10G SFP+ To SFP+ OM2 AOC Active Optical Cable 1 Meter Length High Performance

Name: 10G SFP To SFP OM2 AOC Active Optical Cable 1 Meter Length High Performance
Brand: Linkopto , or OEM
Price: 1 USD

Buy cheap 10G SFP+ To SFP+ OM2 AOC Active Optical Cable 1 Meter Length High Performance product

Brand Name : Linkopto , or OEM

Model Number : ESAX-32CD1

Certification : CE, FCC, ROHS, TUV, ISO9001

Place of Origin : China

MOQ : 1pcs

Price : Get latest price

Payment Terms : T/T, WU, PayPal, Moneygram, L/C

Supply Ability : 20,000pcs per week

Delivery Time : 1~3 working days

Packaging Details : Individual Package for AOC cables

Product Name : 10G AOC Cables

Model Name : ESAX-32CD1

Data Rate : 10G

Cable Length : 1 Meter

DDM : with

Working Environment : Commercial 0~70℃

Compatibility : Cisco, HP, H3C, Alcatel-Lucent, MikroTik, Juniper, Huawei, ZTE, Zyxel, etc

Cable type : OM2

Contact Now

PN: SAX-32CD1

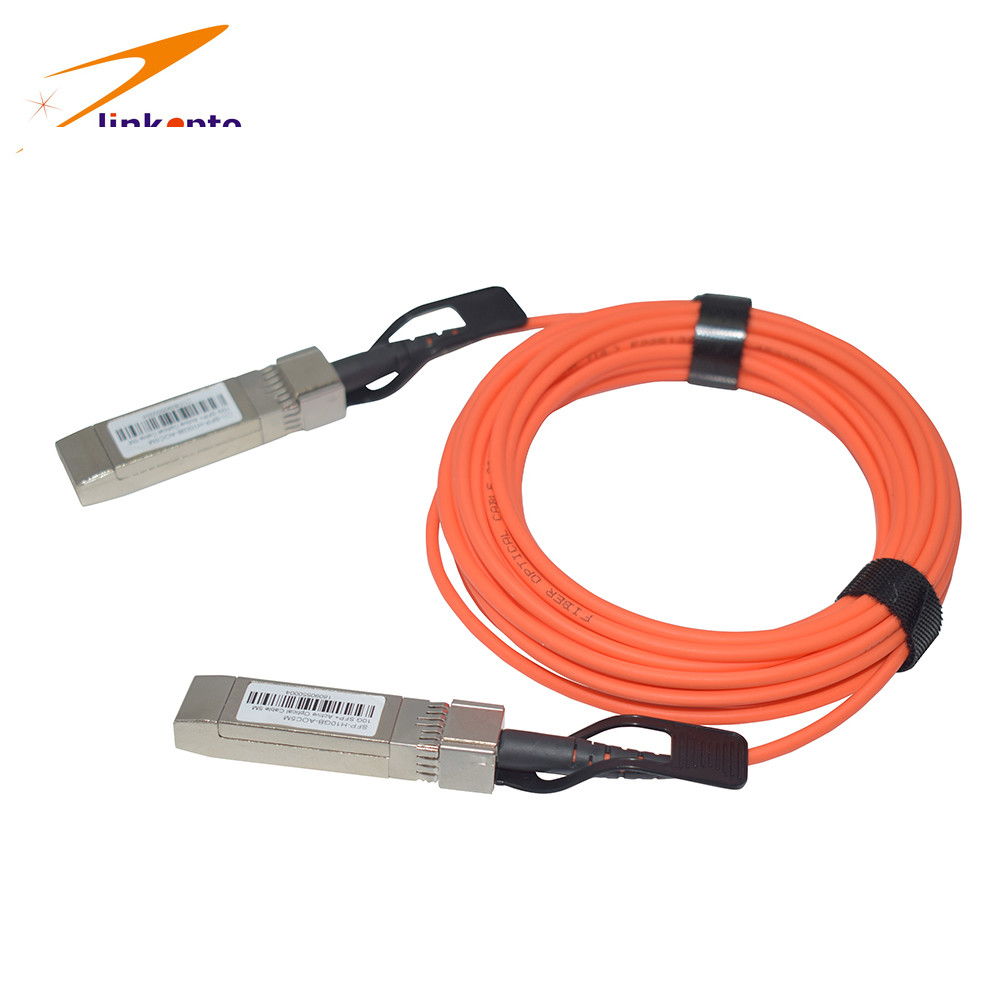

10G SFP+ to SFP+ Active Optical Cables OM2 AOC Cable 1 Meter Length

Features
Ø Electrical interface compliant to SFF-8431

Ø Hot Pluggable

Ø 850nm VCSEL transmitter, PIN photo-detector receiver

Ø Up to 300m on OM3 MMF

Ø Operating case temperature: 0 to 70℃

Ø All-metal housing for superior EMI performance

Ø RoHS compliant (lead free)

Applications
Ø 10Gigabit Ethernet

Ø 4G and 8G Fibre Channel Applications

Ø 1x InfiniBand QDR. DDR, SDR

Ø High-performance computing clusters

Ø Servers, switches, storage and host card adapters

Description
The SFP+ Active Optical Cables are direct-attach fiber assemblies with SFP+ connectors. They are suitable for very short distances and offer a cost-effective way to connect within racks and across adjacent racks. Gigalight SFP+ Active Optical Cables’s length is up to 300 meters on OM3 MMF.

Products List

Part Number	Description	Cable Type
10G SFP+ to SFP+ AOC Cable
SAX-32CD1	10G SFP+ to SFP+ Active Optical Cables 1 meter	OM2
SAX-32CD2	10G SFP+ to SFP+ Active Optical Cables 2 meters	OM2
SAX-32CD3	10G SFP+ to SFP+ Active Optical Cables 3 meters	OM2
SAX-32CD4	10G SFP+ to SFP+ Active Optical Cables 4 meters	OM2
SAX-32CD5	10G SFP+ to SFP+ Active Optical Cables 5 meters	OM2
SAX-32CD7	10G SFP+ to SFP+ Active Optical Cables 7 meters	OM2
SAX-32CD10	10G SFP+ to SFP+ Active Optical Cables 10 meters	OM2
SAX-32CD15	10G SFP+ to SFP+ Active Optical Cables 15 meters	OM2
SAX-32CD20	10G SFP+ to SFP+ Active Optical Cables 20 meters	OM2
SAX-32CD25	10G SFP+ to SFP+ Active Optical Cables 25 meters	OM2
ESAX-32CD30	10G SFP+ to SFP+ Active Optical Cables 30 meters	OM2
